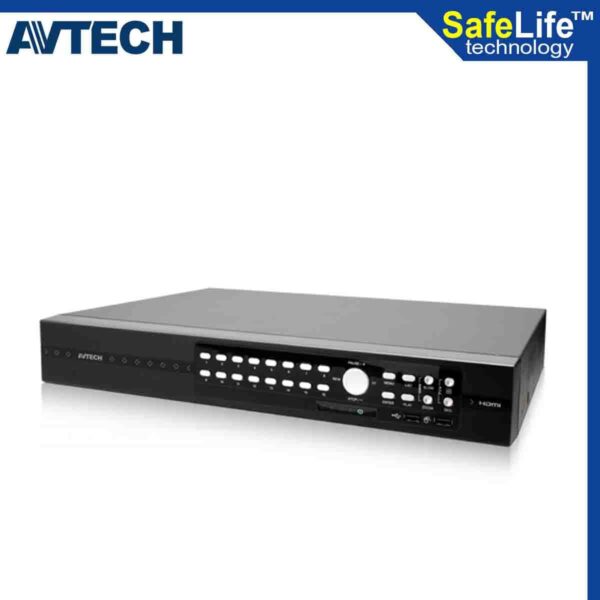

Avtech 16 Channel DVR AVZ316

Avtech

Product Warranty: 2 Year
Brand: Avtech
Model: AVZ316
Contry of Origin: Taiwan
Type : PENTABRID 16CH HD CCTV DVR
Video Compression Format: H.264
Video Output: BNC/VGA/HDMI
HDD Support : 10TB SATA HDD x 3
Online :
Body Type: Metal

Video Compression Format H.264
Video Signal IP / TVI / Analog HD / 960H
Video Input 16 quadbrid channels (IP / TVI / Analog HD / 960H),
within which IP channels are up to 9 channels
Video Output BNC, VGA, HDMI
Video Resolution 1080P / 720P / QHD / 960H / Frame / Field / CIF
Max. Recording Rate Up to 240 IPS @ 1920 x 1080 (16 channels)
Up to 480 IPS @ 1280 x 720 (16 channels)
Recording Mode Manual / Timer / Motion / Alarm / Remote
Pre-alarm Recording YES
Playback Channel 16CH
Quick Search Time / Motion / Alarm search mode
Backup Device USB 2.0 drive / Network
Regular Backup YES
Audio Input 4 audio input
Audio Output 1 audio output (Mono)
Hard Disk Storage 6TB SATA HDD x 3
SATA Interface YES
eSATA Interface YES (For external disk array connection)
Image Quality Setting SUPER BEST / BEST / HIGH / NORMAL
USB Mouse Control YES
Motion Detection Area 16 × 12 grids per channel
Motion Detection Sensitivity 3 adjustable parameters for accurate detection
Event Notification Push Video / Push Status / FTP / E-Mail
Picture Zoom 2X digital zoom
PTZ Control YES
Alarm I/O 8 inputs, 1 output
RS485 YES
IR Remote Control YES (IR receiver built-in)
Key Lock (Password Protection) YES
User Level 4 user levels for different access privilege
Video Loss Detection YES
Camera Title Supports up to 25 letters
Video Adjustable Hue / Saturation / Contrast / Brightness
Date Display Format YY/MM/DD, DD/MM/YY & MM/DD/YY
Daylight Saving YES
Power Source (±10%) 19V/3.42A
Operating Temperature 10ºC ~ 40ºC (50ºF ~104ºF)
Operating Humidity 10% ~ 85%
Dimensions (mm) 430(W) x 65(H) x 438(D)
Net Weight (kg) 4
Ethernet 10/100 Base-T. Supports remote control and live view via Ethernet
Network Protocol TCP/IP, PPPOE, DHCP and DDNS

Feature
Quick Search: Time / Motion / Alarm search mode
Backup Device: USB 2.0 drive / Network
Regular Backup: YES
SATA Interface:YES
Video Resolution: 1080P / 720P / QHD / 960H / Frame / Field / CIF
Video Signal : Analog HD / TVI / CVI / 960H
Video Input: 16 quadbrid channels (IP / TVI / Analog HD / 960H),
within which IP channels are up to 9 channels
Dimensions: 430(W) x 65(H) x 438(D)
Net Weight (kg): 4
